Color, the ultimate expression of emotions, is brought to you by Bambu Lab's Automatic Material System (AMS). You can now enjoy printing freely in multiple colors and materials, a 3D Printing Maestro.
Dual automated bed leveling for doubly guaranteed prints.
Bambu Lab X1 utilizes two sets of independent sensors and an algorithm to measure the height of the nozzle relative to the bed. The lidar and analog force sensors crosscheck for an extra layer of redundancy in bed leveling.
AI inspected first layer.
Tired of waiting out that first layer? Bambu Lab X1 has got your back. The lidar sensor can check your first layer so that you can get back to doing…anything else.
Spaghetti detection.
Our AI keeps an eye out for Spaghetti monsters, so you can sleep easy in the knowledge that your printer is safe from this scourge.
The X1 is assembled, tuned, calibrated, and tested before being shipped to you, so you can enjoy printing right out of the box.
You can send prints by Bambu Studio ,and you can control your printer anytime anywhere with Bambu Handy ,also we support SD card and local network to print the projects

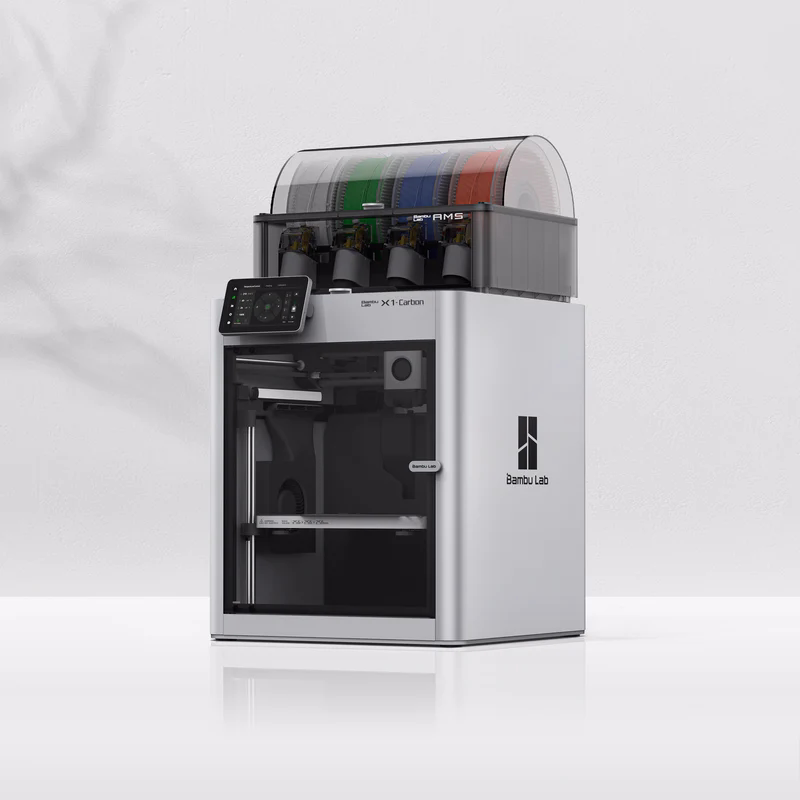

What to Expect from the X1-Carbon Combo 3D Printer
- 20 m/s² acceleration
- Printing up to 16 colors
- Micro lidar assisted bed leveling
- Active vibration compensation for better print quality
- Spaghetti failure detection and auto-pause
- Print resume after power outage
Technology | X1-Carbon | ||
Fused Deposition Modeling | |||
Body | Build Volume (W×D×H) | 256 × 256 × 256 mm³ | |
Chassis | Steel | ||
Shell | Aluminum & Glass | ||
Tool Head | Hotend | All-Metal | |
Extruder Gears | Hardened Steel | ||
Nozzle | Hardened Steel | ||
Max Hot End Temperature | 300 ℃ | ||
Nozzle Diameter (Included) | 0.4 mm | ||
Nozzle Diameter (Optional) | 0.2 mm, 0.6 mm, 0.8 mm | ||
Filament Cutter | Yes | ||
Filament Diameter | 1.75 mm | ||
Hot bed | Build Plate | Flexible Steel Plate | |
Build Plate Surface (Included) | Bambu Cool Plate, Bambu Engineering Plate | ||
Build Plate Surface (Optional) | Bambu High Temperature Plate | ||
Max Build Plate Temperature | 110℃@220V, 120℃@110V | ||
Speed | Max Speed of Tool Head | 500 mm/s | |
Max Acceleration of Tool Head | 20 m/s² | ||
Max Hot End Flow | 32 mm³/s @ABS(Model: 150*150mm single wall; Material: Bambu ABS; Temperature: 280℃) | ||
Cooling | Part Cooling Fan | Closed Loop Control | |
Hot End Fan | Closed Loop Control | ||
Control Board Fan | Closed Loop Control | ||
Chamber Temperature Regulator Fan | Closed Loop Control | ||
Auxiliary Part Cooling Fan | Closed Loop Control | ||
Air Filter | Activated Carbon Filter | ||
Supported Filament | PLA, PETG, TPU, ABS, ASA, PVA, PET | Yes | |
PA, PC | Ideal | ||
Carbon / Glass Fiber Reinforced Polymer | Ideal | ||
Sensors | Bambu Micro Lidar | Yes | |
Chamber Monitoring Camera | 1920 × 1080 Included | ||
Door Sensor | Yes | ||
Filament Run Out Sensor | Yes | ||
Filament Odometry | Optional with AMS | ||
Power Loss Recover | Yes | ||
Physical Dimensions | Dimensions | 389 × 389 × 457mm | |
Net Weight | 14.13kg | ||
Electrical Requirements | Voltage | 100-240 VAC, 50/60 Hz | |
Max Power | 1000W@220V, 350W@110V | ||
Electronics | Display | 5-inch 1280 × 720 Touch Screen | |
Connectivity | Wi-Fi, Bambu-Bus | ||
Storage | 4GB EMMC and Micro SD Card Reader | ||
Control Interface | Touch Screen, APP, PC Application | ||
Motion Controller | Dual-Core Cortex M4 | ||
Application Processor | Quad ARM A7 1.2 GHz | ||
Neural-Network Processing Unit | 2 Tops | ||
Software | Slicer | Bambu Studio Support third party slicers which export standard G-code such as Superslicer, Prusaslicer and Cura, but certain advanced features may not be supported. | |
Slicer Supported OS | MacOS, Windows |
